ABB Components
2CSR255163R1105
Earth leakage circuit breaker
Manufacturer part number: 2CSR255163R1105
Serie: System pro M compact
Type: DS301C B10 A30
EAN-code: 8012542359456
SKU Omnical: 4169077
Stock: 0.
Estimated lead time: 8 days *
PreOrder
ZQY
€
204,00
per item
€
142,80
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

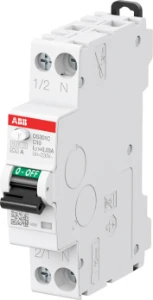

2CSR255163R1105 ABB Components Earth leakage circuit breaker
ABB Components Earth leakage circuit breaker Aardlekautomaat 1P+N, B Kar, 10A, 30mA, 6kA
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles (total)
1
Number of protected poles
1
Rated current
(A)
10
Rated fault current
(A)
0.03
Release characteristic
B
Concurrently switching neutral conductor
Yes
Leakage current type
A
Rated short-circuit breaking capacity according to IEC 60947-2
(kA)
6
Rated voltage
(V)
240
Current limiting class
3
Frequency
50/60 Hz
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Built-in depth
(mm)
17.6
Degree of protection (IP)
IP20
Voltage type
AC
Anti-nuisance tripping version
No
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity according to EN 61009
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
6
Disconnection characteristic
Undelayed
With interlocking device
No
Ambient temperature during operating
(°C)
-25 - 55
Connectable conductor cross section solid-core
(mm²)
1.5 - 16
Connectable conductor cross section multi-wired
(mm²)
1.5 - 10
Flush-mounted installation
No
Power loss
(W)
2.6
Mounting method
DIN rail
Stock and logistics
Height
0.025 m
Width
0.081 m
Depth
0.098 m
Packaging
Package
Weight
0.11 kg
HS code
85363010
