ABB Components 2CSR255163U1165
ABB Components

2CSR255163U1165

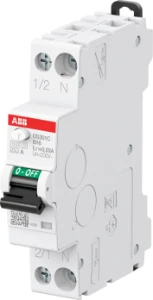

Earth leakage circuit breaker
Manufacturer part number: 2CSR255163U1165
Serie: System pro M compact
Type: DS301C B16 A30

EAN-code: 8012542359951
SKU Omnical: 4169085

Stock: 0.

Estimated lead time: 8 days *
PreOrder

ZRE
174,00 per item
79,52 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
2CSR255163U1165 ABB Components Earth leakage circuit breaker
ABB Components Earth leakage circuit breaker Aardlekautomaat 1P+N, B Kar, 16A, 30mA, 6kA Omverpakking 96 stuks
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Number of poles (total)
1
Number of protected poles
1
Rated voltage (V)
240
Rated current (A)
16
Rated fault current (A)
0.03
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to IEC 60947-2 (kA)
6
Frequency
50/60 Hz
Release characteristic
B
Concurrently switching neutral conductor
Yes
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Built-in depth (mm)
17.6
Degree of protection (IP)
IP20
Voltage type
AC
Anti-nuisance tripping version
No
Rated insulation voltage Ui (V)
500
Rated impulse withstand voltage Uimp (kV)
4
Rated short-circuit breaking capacity according to EN 61009 (kA)
6
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA)
6
Disconnection characteristic
Undelayed
With interlocking device
No
Ambient temperature during operating (°C)
-25 - 55
Connectable conductor cross section solid-core (mm²)
1.5 - 16
Connectable conductor cross section multi-wired (mm²)
1.5 - 10
Flush-mounted installation
No
Power loss (W)
2.83
Mounting method
DIN rail

Stock and logistics

Height
0.165 m
Width
0.19 m
Depth
0.44 m

Packaging
Package
Weight
0.11 kg
HS code
85363010
