ABB Components

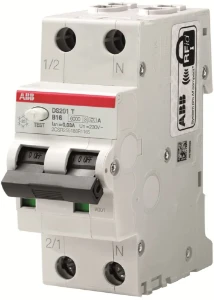

2CSR255188R1164
Earth leakage circuit breaker
Manufacturer part number: 2CSR255188R1164
Serie: System pro M compact
Type: DS201TC16A30
EAN-code: 8012542566410
SKU Omnical: 4126915
Stock: 0.
Estimated lead time: 8 days *
PreOrder
ZQY
€
230,00
per item
€
161,00
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CSR255188R1164 ABB Components Earth leakage circuit breaker
ABB Components Earth leakage circuit breaker Aardlekautomaat tractie 6kA, C kar., 16A, A-type, 0,03A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles (total)
2
Number of protected poles
2
Rated current
(A)
16
Rated fault current
(A)
0.03
Release characteristic
C
Concurrently switching neutral conductor
Yes
Leakage current type
A
Rated short-circuit breaking capacity according to IEC 60947-2
(kA)
10
Rated voltage
(V)
230
Current limiting class
3
Frequency
50/60 Hz
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
2
Built-in depth
(mm)
35
Degree of protection (IP)
IP20
Voltage type
AC
Anti-nuisance tripping version
No
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity according to EN 61009
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
6
Disconnection characteristic
Undelayed
With interlocking device
No
Ambient temperature during operating
(°C)
-25 - 55
Connectable conductor cross section solid-core
(mm²)
0.75 - 25
Connectable conductor cross section multi-wired
(mm²)
0.75 - 16
Flush-mounted installation
No
Power loss
(W)
45
Mounting method
DIN rail
Stock and logistics
Height
0.106 m
Width
0.04 m
Depth
0.08 m
Packaging
Package
Weight
0.182 kg
HS code
85363010
