ABB Components 2CSR772140R3164
ABB Components

2CSR772140R3164

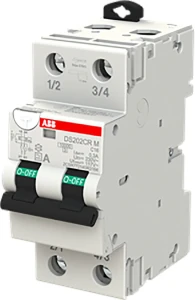

Earth leakage circuit breaker
Manufacturer part number: 2CSR772140R3164
Serie:
Type:

EAN-code: 4022903034704
SKU Omnical: 4273835

Stock: 0.

Estimated lead time: 8 days *
PreOrder

ZQY
320,00 per item
224,00 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
2CSR772140R3164 ABB Components Earth leakage circuit breaker
ABB Components Earth leakage circuit breaker Aardlekautomaat DS202CRM 2P C16 300mA 10kA Type A Tractie
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Number of poles (total)
2
Number of protected poles
2
Rated voltage (V)
230
Rated current (A)
16
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to IEC 60947-2 (kA)
10
Frequency
50 Hz
Release characteristic
C
Concurrently switching neutral conductor
Yes
Over voltage category
3
Pollution degree
3
Width in number of modular spacings
2
Built-in depth (mm)
72
Degree of protection (IP)
IP20
Surge current capacity (kA)
0.25
Voltage type
AC
Anti-nuisance tripping version
No
Rated insulation voltage Ui (V)
440
Rated impulse withstand voltage Uimp (kV)
4
Rated short-circuit breaking capacity according to EN 61009 (kA)
10
Disconnection characteristic
Undelayed
With interlocking device
No
Ambient temperature during operating (°C)
-25 - 55
Connectable conductor cross section solid-core (mm²)
1 - 35
Connectable conductor cross section multi-wired (mm²)
1 - 25
Flush-mounted installation
No
Power loss (W)
4.2

Stock and logistics

Height
0.086 m
Width
0.036 m
Depth
0.072 m

Packaging
Package
Weight
0.22 kg
