ABB Components

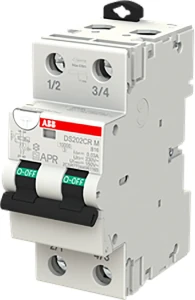

2CSR772440R1165
Earth leakage circuit breaker
Manufacturer part number: 2CSR772440R1165
Serie:
Type: DS202CR M B16 APR30
EAN-code: 4022903035268
SKU Omnical: 4273838
Stock: 0.
Estimated lead time: 37 days *
PreOrder
ZQY
€
347,00
per item
€
242,90
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CSR772440R1165 ABB Components Earth leakage circuit breaker
ABB Components Earth leakage circuit breaker Aardlekautomaat DS202CRM 2P B16 30mA 10kA Type AP-R Tractie
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles (total)
2
Number of protected poles
2
Rated voltage
(V)
230
Rated current
(A)
16
Rated fault current
(A)
0.03
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to IEC 60947-2
(kA)
10
Frequency
50 Hz
Release characteristic
B
Concurrently switching neutral conductor
Yes
Over voltage category
3
Pollution degree
3
Width in number of modular spacings
2
Built-in depth
(mm)
72
Degree of protection (IP)
IP20
Surge current capacity
(kA)
3
Voltage type
AC
Anti-nuisance tripping version
Yes
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity according to EN 61009
(kA)
10
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
10
Disconnection characteristic
Short-time delayed
With interlocking device
No
Ambient temperature during operating
(°C)
-25 - 55
Connectable conductor cross section solid-core
(mm²)
1 - 35
Connectable conductor cross section multi-wired
(mm²)
1 - 25
Flush-mounted installation
No
Power loss
(W)
4.2
Mounting method
DIN rail
Stock and logistics
Height
0.106 m
Width
0.04 m
Depth
0.08 m
Packaging
Package
Weight
0.22 kg
HS code
85363010
