ABB Components
2CTB802346R2100

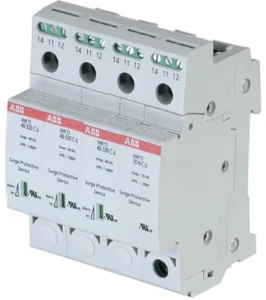

Surge protection device for power supply systems
Manufacturer part number: 2CTB802346R2100
Serie: System pro M compact
Type: OVR T2 3N 40 150 P TS U
EAN-code: 3660308518712
SKU Omnical: 2287550
Stock: 0.
Estimated lead time: 14 days *
PreOrder
ZRH
€
1.699,00
per item
€
1.238,57
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CTB802346R2100 ABB Components Surge protection device for power supply systems
ABB Components Surge protection device for power supply systems overspanningsbeveiliging Type 2 UL uitv. 3 pool + nul, 40kA, 175V cart
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of poles
3+N/PE
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
120
Voltage protection level
(kV)
0.7
Voltage protection level L-N
(kV)
0.7
Voltage protection level N-PE
(kV)
0.7
Mounting method
Other
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
25
Max. conductor cross section flexible (fine-strand)
(mm²)
16
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-C-S
Yes
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
Yes
Number of conductors (without earthing)
4
Short-circuit breaking capacity (Isccr)
(kA)
100
Max. discharge surge current (8/20)
(kA)
40
Max. overcurrent protection device, series connection (fuse)
(A)
100
Integrated short-circuit protection
No
Integrated short-circuit protection selective to fuse gG
(A)
125
Leakage-current free
Yes
Stock and logistics
Height
0.082 m
Width
0.117 m
Depth
0.077 m
Packaging
Package
Weight
0.54 kg
HS code
85363090
