ABB Components
2CTB802348R6500

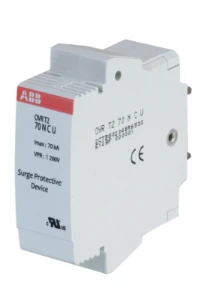

Surge protection device for power supply systems
Manufacturer part number: 2CTB802348R6500
Serie: System pro M compact
Type: OVR T2 70 N C U
EAN-code: 3660308518835
SKU Omnical: 2287561
Stock: 0.
Estimated lead time: 54 days *
PreOrder
ZRH
$
188.14
per item
$
137.15
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CTB802348R6500 ABB Components Surge protection device for power supply systems
ABB Components Surge protection device for power supply systems vervangings cartridge Type 2 UL uitv. nul, 70kA, 255V
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal discharge surge current (8/20)
(kA)
7
Nominal voltage AC
(V)
480
Max. continuous voltage AC
(V)
550
Voltage protection level
(kV)
1.2
Voltage protection level N-PE
(kV)
1.8
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
25
Max. conductor cross section flexible (fine-strand)
(mm²)
16
With remote signalling contact
Yes
Integrated backup fuse
Yes
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-C-S
Yes
System configuration TN-S
Yes
System configuration TT
No
System configuration other
Yes
Number of conductors (without earthing)
1
Short-circuit breaking capacity (Isccr)
(kA)
100
Max. discharge surge current (8/20)
(kA)
70
Integrated short-circuit protection
No
Leakage-current free
No
Stock and logistics
Height
0.082 m
Width
0.117 m
Depth
0.025 m
Packaging
Package
Weight
0.04 kg
HS code
85363090
