ABB Components
2CTB803972R1100

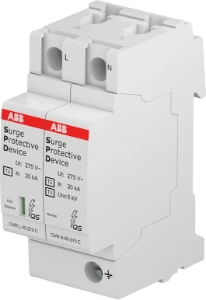

Surge protection device for power supply systems
Manufacturer part number: 2CTB803972R1100
Serie: System pro M compact
Type: OVR T2 1N 40 275 P QS
EAN-code: 3660308519696
SKU Omnical: 2287677
Stock: 0.
Estimated lead time: 8 days *
PreOrder
ZRH
$
180.21
per item
$
131.37
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CTB803972R1100 ABB Components Surge protection device for power supply systems
ABB Components Surge protection device for power supply systems Overspanningsbeveiliging Type 2, 1P+N Cardridge vervangbaar
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of poles
1+N/PE
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
230
Max. continuous voltage AC
(V)
275
Max. continuous voltage DC
(V)
350
Voltage protection level
(kV)
1.5
Voltage protection level L-N
(kV)
1.25
Voltage protection level N-PE
(kV)
1.4
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
2 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
25
Max. conductor cross section flexible (fine-strand)
(mm²)
16
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Short-circuit-proof
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-C-S
Yes
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
Number of conductors (without earthing)
2
Short-circuit breaking capacity (Isccr)
(kA)
100
Max. discharge surge current (8/20)
(kA)
80
Max. overcurrent protection device, parallel connection (fuse)
(A)
125
Max. overcurrent protection device, series connection (fuse)
(A)
125
Integrated short-circuit protection
No
Integrated short-circuit protection selective to fuse gG
(A)
125
Leakage-current free
Yes
Stock and logistics
Height
0.082 m
Width
0.117 m
Depth
0.041 m
Packaging
Package
Weight
0.24 kg
HS code
85363090
