ABB Components
2TAM923100R3401

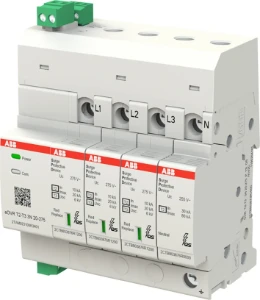

Surge protection device for power supply systems
Manufacturer part number: 2TAM923100R3401
Serie:
Type: eOVR T2-T3 3N 20-275
EAN-code: 6941593457182
SKU Omnical: 4189502
Stock: 0.
Estimated lead time: 11 days *
PreOrder
ZRH
$
1,706.04
per item
$
1,243.71
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2TAM923100R3401 ABB Components Surge protection device for power supply systems
ABB Components Surge protection device for power supply systems Digital overspanningsbeveiliging Type 2, 3P+N Cardridge vervangbaar
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal discharge surge current (8/20)
(kA)
5
Nominal voltage AC
(V)
230
Max. continuous voltage AC
(V)
275
Voltage protection level L-N
(kV)
14
Voltage protection level N-PE
(kV)
14
Mounting method
Other
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
25
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
Number of conductors (without earthing)
4
Short-circuit breaking capacity (Isccr)
(kA)
100
Max. discharge surge current (8/20)
(kA)
20
Max. overcurrent protection device, parallel connection (fuse)
(A)
125
Leakage-current free
Yes
Stock and logistics
Height
0.115 m
Width
0.128 m
Depth
0.145 m
Packaging
Package
Weight
0.779 kg
HS code
85363090
