ABB Components
2TLA020051R5200

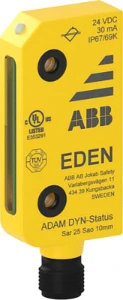

Magnetic proximity switch
Manufacturer part number: 2TLA020051R5200
Serie: Jokab / Eden
Type: ADAM DYN-STATUS M12-5 CON
EAN-code: 7350024480313
SKU Omnical: 2287918
Stock: 0.
Estimated lead time: 8 days *
PreOrder
ZQR
$
166.37
per item
$
161.55
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2TLA020051R5200 ABB Components Magnetic proximity switch
ABB Components Magnetic proximity switch Contactloze veiligheidssensor dynamisch signaal status M12 5 contacten
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
1
Number of protected contact energized outputs
0
Type of actuation
Transponder
Type of interface for safety communication
Other
Type of electric connection
Connector M12
Type of switching output
Other
Width sensor
(mm)
12
Height of sensor
(mm)
75.2
Length of sensor
(mm)
30
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Other
Material housing
Plastic
Coating housing
Uncoated
Protected switch distance OFF
(mm)
25
Protected switch distance ON
(mm)
10
Category according to EN 954-1
4
Performance level according to EN ISO 13849-1
Level e
Max. output current at protected output
(mA)
15
Ambient temperature
(°C)
-40 - 70
Mechanical mounting condition for sensor
Other
Min. output current
(mA)
0
Rated supply voltage at AC 50 Hz
(V)
0 - 0
Rated supply voltage at AC 60 Hz
(V)
0 - 0
Rated supply voltage at DC
(V)
24 - 24
Voltage type
DC
Cross-/short circuit identification possible
Yes
Switching distance
(mm)
15
With monitoring function downstream switching devices
No
Suitable for safety functions
Yes
Degree of protection (IP)
Other
SIL according to IEC 61508
3
With status indication
Yes
Degree of protection (NEMA)
4X
Stock and logistics
Height
0.075 m
Width
0.016 m
Depth
0.075 m
Packaging
Package
Weight
0.026 kg
HS code
85365080
