ABB VanLien
7TCA091140R0368

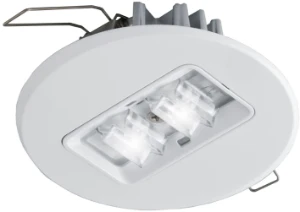

Emergency luminaire
Manufacturer part number: 7TCA091140R0368
Serie: Evago
Type: EVA-R-CLI/FLX
EAN-code: 8713812762142
SKU Omnical: 3108692
Stock: 0.
Estimated lead time: 35 days *
PreOrder
L53
€
179,00
per item
€
148,39
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
7TCA091140R0368 ABB VanLien Emergency luminaire
ABB VanLien Emergency luminaire Centraal 2 watt 220 volt rond wit inbouw led armatuur,inclusief contro
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
Built-in
Lamp type
LED not exchangeable
Lamp holder
Other
Lamp power
(W)
2
Circuit
Other
Width
(mm)
100
Material housing
Plastic
Colour housing
White
Material cover
Plastic, transparent
Suitable for labelling type
Other
Monitoring equipment
Safety module for monitoring (central feeded system)
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
No
Power supply system
Central (central battery)
Nominal voltage
(V)
220 - 240
Protection class
II
Degree of protection (IP)
IP42
With light source
Yes
Length
(mm)
226
Height/depth
(mm)
38
Outer diameter
(mm)
100
Built-in length
(mm)
226
Built-in width
(mm)
68
Built-in depth
(mm)
35
Built-in diameter
(mm)
68
Luminous flux at emergency operation
(lm)
203
Voltage type
AC/DC
Nominal current
(mA)
24 - 24
Autonomy
(h)
0
Rated luminous flux according to IEC 62722-2-1
(lm)
274
Colour of light
White
Colour temperature
(K)
5600 - 5600
Colour rendering index CRI
70-79
Function
Escape route lighting
Suitable for number of lamps
1
Number of lighting heads
1
Type of control gear
LED operating device current-controlled
Light distributor
Focal lens
Rated ambient temperature according to IEC62722-2-1
(°C)
0 - 40
Power factor
0.9
Built-in height/depth
(mm)
35
Type of wiring
Ending
Number of poles
5
Conductor cross section
(mm²)
2.5
Connection type
Screw connection
With remote control
Yes
Exchangeable control gear
Yes
RAL-number housing
9003
Stock and logistics
Height
0.062 m
Width
0.165 m
Depth
0.222 m
Packaging
Package
Weight
0.305 kg
HS code
94054990
