ABB VanLien
7TCA091160R0004

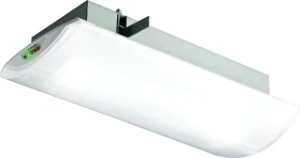

Emergency luminaire
Manufacturer part number: 7TCA091160R0004
Serie: Optilux
Type: ILN-1/ZT/LED
EAN-code: 8713812745466
SKU Omnical: 1129424
Stock: 0.
Estimated lead time: 15 days *
PreOrder
L54
€
337,00
per item
€
274,32
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
7TCA091160R0004 ABB VanLien Emergency luminaire
ABB VanLien Emergency luminaire Decentraal 1 watt, continu inbouw led armatuur, inclusief automatische
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
Built-in
Lamp type
LED not exchangeable
Lamp power
(W)
1
Circuit
Other
Width
(mm)
167
Material housing
Plastic
Colour housing
White
Material cover
Plastic, transparent
Type of indicator
Single-sided
Suitable for labelling type
Insert sheet/plate
Monitoring equipment
Automatic self test
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Nominal voltage
(V)
220 - 230
Protection class
I
Degree of protection (IP)
IP20
With light source
Yes
Length
(mm)
364
Height/depth
(mm)
89
Outer diameter
(mm)
0
Built-in length
(mm)
292
Built-in width
(mm)
120
Built-in depth
(mm)
43
Recognition distance
(m)
25
Battery quality
NiCd
Voltage type
AC
Autonomy
(h)
1
Rated luminous flux according to IEC 62722-2-1
(lm)
90.2
Colour of light
White
Colour temperature
(K)
6350 - 6350
Colour rendering index CRI
70-79
Function
Escape route signage
With pictogram
Yes
Suitable for number of lamps
2
Number of lighting heads
1
Type of control gear
LED operating device current-controlled
Light distributor
Refractor lens
Max. system power
(W)
5.1
Power factor
0.52
Nominal operation time
(h)
1 - 1
Built-in height/depth
(mm)
43
Type of wiring
Ending
Number of poles
4
Conductor cross section
(mm²)
2.5
Connection type
Screw connection
With remote control
No
Exchangeable control gear
Yes
Constant light output (CLO)
No
Stock and logistics
Height
0.12 m
Width
0.188 m
Depth
0.426 m
Packaging
Package
Weight
1.8 kg
HS code
94054990
