ABB VanLien
7TCA091180R0361
Emergency luminaire
Manufacturer part number: 7TCA091180R0361
Serie: Evago
Type: EVA-DLO/CIS/ZWART
EAN-code: 8713812770253
SKU Omnical: 3108728
Stock: 0.
Estimated lead time: 42 days *
PreOrder
L53
€
325,00
per item
€
269,42
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

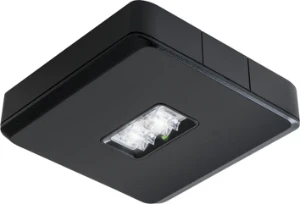

7TCA091180R0361 ABB VanLien Emergency luminaire
ABB VanLien Emergency luminaire Decentraal 2 watt zwart continu opbouw led armatuur inclusief controle
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
Ceiling surface mounting
Lamp type
LED not exchangeable
Lamp holder
Other
Lamp power
(W)
2
Circuit
Other
Width
(mm)
150
Material housing
Aluminium
Colour housing
Black
Material cover
Plastic, transparent
Suitable for labelling type
Other
Monitoring equipment
Safety module for monitoring (central feeded system)
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Nominal voltage
(V)
220 - 240
Protection class
II
Degree of protection (IP)
IP54
With light source
Yes
Length
(mm)
150
Height/depth
(mm)
35
Outer diameter
(mm)
0
Built-in length
(mm)
0
Built-in width
(mm)
0
Built-in diameter
(mm)
0
Luminous flux at emergency operation
(lm)
203
Battery quality
NiMH
Voltage type
AC
Nominal current
(mA)
15 - 15
Autonomy
(h)
1
Rated luminous flux according to IEC 62722-2-1
(lm)
203
Colour of light
White
Colour temperature
(K)
5600 - 5600
Colour rendering index CRI
70-79
Function
Escape route lighting
With pictogram
No
Suitable for number of lamps
1
Number of lighting heads
1
Type of control gear
LED operating device current-controlled
Light distributor
Focal lens
Rated ambient temperature according to IEC62722-2-1
(°C)
5 - 35
Max. system power
(W)
3
Luminous flux in standby mode
(lm)
203
Power factor
0.85
Nominal operation time
(h)
1 - 1
Built-in height/depth
(mm)
0
Type of wiring
Suitable for through wiring
Number of poles
8
Conductor cross section
(mm²)
2.5
Connection type
Plug-in connection
With remote control
Yes
Exchangeable control gear
Yes
RAL-number housing
9011
Stock and logistics
Height
0.062 m
Width
0.165 m
Depth
0.222 m
Packaging
Package
Weight
0.969 kg
HS code
94054990
