ABB VanLien
7TCA309010R0169

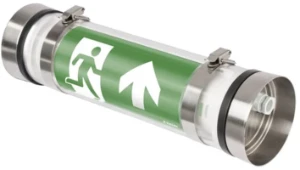

Emergency luminaire
Manufacturer part number: 7TCA309010R0169
Serie:
Type: IND 1X4A/3/BT/LED
EAN-code: 5415022531947
SKU Omnical: 4234093
Stock: 0.
Estimated lead time: 38 days *
PreOrder
L53
€
572,00
per item
€
474,19
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
7TCA309010R0169 ABB VanLien Emergency luminaire
ABB VanLien Emergency luminaire Decentraal 4 watt, continu opbouw led ar matuur, inclusief controle-bo
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
Wall surface mounted / ceiling surface mounting
Lamp type
LED not exchangeable
Width
(mm)
114
Material housing
Stainless steel
Colour housing
Stainless steel
Material cover
Plastic, transparent
Type of indicator
Single-sided
Suitable for labelling type
Insert sheet/plate
Monitoring equipment
Safety module for monitoring (central feeded system)
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Nominal voltage
(V)
220 - 230
Protection class
II
Degree of protection (IP)
IP68
With light source
Yes
Length
(mm)
400
Height/depth
(mm)
114
Outer diameter
(mm)
108
Built-in length
(mm)
0
Built-in width
(mm)
0
Recognition distance
(m)
17
Battery quality
NiMH
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
200
Colour temperature
(K)
6000 - 6000
Function
Escape route lighting/signage
With pictogram
No
Suitable for number of lamps
1
Number of lighting heads
1
Type of control gear
LED operating device current-controlled
Impact strength
IK10
Rated ambient temperature according to IEC62722-2-1
(°C)
0 - 40
Max. system power
(W)
3.5
Power factor
0.5
Nominal operation time
(h)
3 - 3
Type of wiring
Suitable for through wiring
Number of poles
4
Conductor cross section
(mm²)
2.5
Connection type
Other
With remote control
Yes
Exchangeable control gear
Yes
Constant light output (CLO)
Yes
RAL-number housing
9003
Stock and logistics
Height
0.14 m
Width
0.134 m
Depth
0.425 m
Packaging
Package
Weight
1.596 kg
HS code
94054990
