ABB Components
1SBL236082R3022
Power contactor, AC switching
Manufacturer part number: 1SBL236082R3022
Serie: Magneetschakelaar / AFS
Type: AFS 26Z-30-22-30 24VDC
EAN-code: 3471523158498
SKU Omnical: 1603667
Stock: 0.
Estimated lead time: 8 days *
PreOrder
ZQG
€
260,00
per item
€
176,54
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

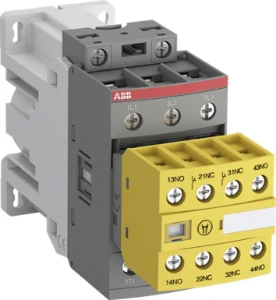

1SBL236082R3022 ABB Components Power contactor, AC switching
ABB Components Power contactor, AC switching Veiligeheids Magneetschakelaar 3 polig 11 kW 400V, aux 2 m, 2 v coil 2
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated operation power at AC-3, 400 V
(kW)
11
Voltage type for actuating
AC/DC
Rated control supply voltage at AC 50 Hz
(V)
100 - 250
Rated control supply voltage at AC 60 Hz
(V)
100 - 250
Rated control supply voltage at DC
(V)
24 - 24
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as normally closed contact
2
Rated operation current Ie at AC-1, 400 V
(A)
45
Rated operation current Ie at AC-3, 400 V
(A)
26
Modular version
No
Width
(mm)
45
Type of electrical connection of main circuit
Screw connection
Height
(mm)
86
Depth
(mm)
139.5
Rated operation power NEMA
(kW)
11.186
Operating voltage at AC 50 Hz
(V)
690 - 690
Operating voltage at AC 60 Hz
(V)
690 - 690
Stock and logistics
Height
0.05 m
Width
0.096 m
Depth
0.145 m
Packaging
Package
Weight
0.54 kg
HS code
85364900
