Adels
146412
Plug-in connector for plug-in building installation
Manufacturer part number: 146412
Serie:
Type: 2-polig male
EAN-code: 8712251386681
SKU Omnical: 4250019
Stock: 0.
Estimated lead time: 5 days *
PreOrder
SSL Connection
WorldWide Shipping
146412 Adels Plug-in connector for plug-in building installation

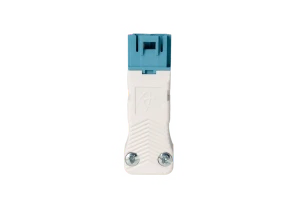

Adels Plug-in connector for plug-in building installation Steker male, 2-polig, pastelblauw DALI
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
250
Rated current
(A)
16
Number of poles
2
Degree of protection (IP)
IP20
Connection type
Screw connection
Model
Plug
Number of connections per pole
1
Pole codification
1+, 2-
Mechanical coding
Yes
Colour coding/contact insert
Other
With strain relief
Yes
Material housing
Polyamide (PA)
Halogen free
Yes
Contact material
Other
Surface treatment contacts
Other
Connection cross section (fine-strand)
(mm²)
0.5 - 2.5
Connection cross section (solid-core)
(mm²)
0.5 - 2.5
Locking mechanism
Integrated in plug-in connector
Max. continuous temperature resistance contact part
(°C)
70
Max. continuous temperature resistance strain relief
(°C)
70
Stock and logistics
Height
1 mm
Width
1 mm
Depth
1 mm
Packaging
item
HS code
85369010
