Adels
160063

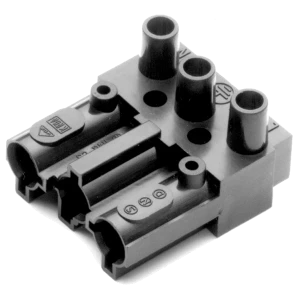

Plug-in connector for plug-in building installation
Manufacturer part number: 160063
Serie:
Type: Male-1
EAN-code: 8712251347842
SKU Omnical: 4249440
Stock: 0.
Estimated lead time: 33 days *
PreOrder
XUR
$
276.26
per 100 items
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
160063 Adels Plug-in connector for plug-in building installation
Adels Plug-in connector for plug-in building installation steker, 3-polig zwart
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
250
Rated current
(A)
20
Number of poles
3
Degree of protection (IP)
IP20
Connection type
Screw connection
Model
Plug
Number of connections per pole
1
Pole codification
L, N, PE
Mechanical coding
No
Colour coding/contact insert
Black
With strain relief
Yes
Material housing
Polyamide (PA)
Halogen free
Yes
Contact material
Other
Surface treatment contacts
Other
Connection cross section (fine-strand)
(mm²)
0.5 - 2.5
Connection cross section (solid-core)
(mm²)
0.5 - 2.5
Locking mechanism
Separate
Max. continuous temperature resistance contact part
(°C)
100
Max. continuous temperature resistance strain relief
(°C)
100
Stock and logistics
Height
1 mm
Width
1 mm
Depth
1 mm
Packaging
item
Weight
10 GRM
HS code
85369010
