Adels
162003
Plug-in connector for plug-in building installation
Manufacturer part number: 162003
Serie:
Type: 3-polig
EAN-code: 8712251347941
SKU Omnical: 4249443
Stock: 0.
Estimated lead time: 33 days *
PreOrder
SSL Connection
WorldWide Shipping

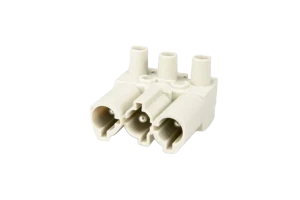

162003 Adels Plug-in connector for plug-in building installation
Adels Plug-in connector for plug-in building installation steker, 3-polig, male grijs
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
250
Rated current
(A)
20
Number of poles
3
Degree of protection (IP)
IP20
Connection type
Screw connection
Model
Plug
Number of connections per pole
1
Pole codification
L, N, PE
Mechanical coding
No
Colour coding/contact insert
Black
With strain relief
No
Material housing
Polyamide (PA)
Halogen free
Yes
Contact material
Other
Surface treatment contacts
Other
Connection cross section (fine-strand)
(mm²)
0.5 - 2.5
Connection cross section (solid-core)
(mm²)
0.5 - 2.5
Locking mechanism
Separate
Max. continuous temperature resistance contact part
(°C)
100
Stock and logistics
Height
1 mm
Width
1 mm
Depth
1 mm
Packaging
item
Weight
11 GRM
HS code
85369010
