Adels
162263
Plug-in connector for plug-in building installation
Manufacturer part number: 162263
Serie:
Type: 3-polig 1mm
EAN-code: 8712251377481
SKU Omnical: 4249480
Stock: 0.
Estimated lead time: 33 days *
PreOrder
SSL Connection
WorldWide Shipping

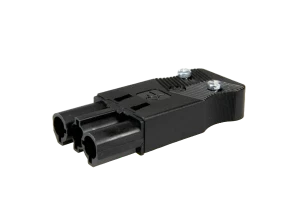

162263 Adels Plug-in connector for plug-in building installation
Adels Plug-in connector for plug-in building installation Steker vlak, 3-polig, 1 mm2, male zwart
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
250
Rated current
(A)
20
Number of poles
3
Degree of protection (IP)
IP20
Connection type
Screw connection
Model
Plug
Number of connections per pole
1
Mechanical coding
No
With strain relief
Yes
Material housing
Polyamide (PA)
Halogen free
Yes
Contact material
Other
Surface treatment contacts
Other
Connection cross section (fine-strand)
(mm²)
0.5 - 1
Connection cross section (solid-core)
(mm²)
0.5 - 1
Locking mechanism
Separate
Max. continuous temperature resistance contact part
(°C)
100
Max. continuous temperature resistance strain relief
(°C)
100
Stock and logistics
Height
1 mm
Width
1 mm
Depth
1 mm
Packaging
item
Weight
16 GRM
HS code
85444290
