Adels
168863

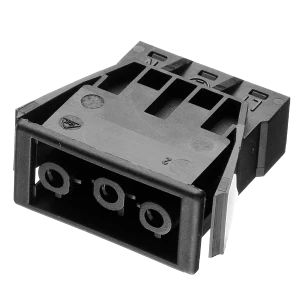

Device connection for plug-in building installation
Manufacturer part number: 168863
Serie:
Type: 3-polig, separate vergrendeling
EAN-code: 8712251336549
SKU Omnical: 4249525
Stock: 0.
Estimated lead time: 5 days *
PreOrder
XUR
€
3,64
per item
€
2,08
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
168863 Adels Device connection for plug-in building installation
Adels Device connection for plug-in building installation chassisdeel, 3-polig, female zwart, separate vergrendeling
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
250
Rated current
(A)
20
Number of poles
3
Degree of protection (IP)
IP20
Connection type
Spring clamp connection
Model
Bus
Built-in version
Snap-in/screw-in device
Angle of plug
Straight
Connection size thread
No thread connection
Number of connections per pole
2
Pole codification
L, N, PE
Colour coding/contact insert
Black
Colour of the separate adapter piece
Without adapter piece
Material housing
Polyamide (PA)
Halogen free
No
Contact material
Other
Surface treatment contacts
Other
Connection cross section (fine-strand)
(mm²)
0.5 - 2.5
Connection cross section (solid-core)
(mm²)
0.5 - 2.5
Colour housing
Black
Locking mechanism
Separate
Max. continuous temperature resistance contact part
(°C)
100
Max. continuous temperature resistance strain relief
(°C)
100
Wall thickness housing
(mm)
0.5
Stock and logistics
Height
20 mm
Width
34 mm
Depth
39 mm
Packaging
item
Weight
15 g
HS code
85369010
