Adels
Adels-Theben LUXA

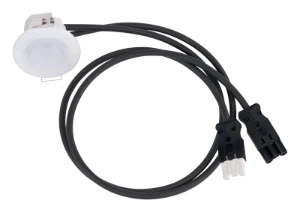

Movement sensor / presence detector complete
Manufacturer part number: Adels-Theben LUXA
Serie:
Type: Aanwezigheidsmelders
EAN-code: 8712251304555
SKU Omnical: 4250143
Stock: 0.
Estimated lead time: 5 days *
PreOrder
XUR
€
148,35
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
Adels-Theben LUXA Adels Movement sensor / presence detector complete
Adels Movement sensor / presence detector complete Aanwezigheidsmelder, met aansluitsn. male-female, 3x1,5mm 1meter, B2ca
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Presence detector
Constant light control
No
HVAC-control
No
Forced switch off
No
Animal zone
No
Width
(mm)
80
Creep-under protection
No
Networkable
No
Optimum mounting height
(m)
3
Staircase monitoring
Yes
Bridging switch
No
Max. transmission range sideways
(m)
6
Max. transmission range frontally
(m)
6
Diameter detection range on floor
(m)
12
Suitable for wireless transmission
No
Remote operation
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
Yes
Teach-function for response value luminosity
Yes
Dim function with dimmer basic element
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP54
Voltage type
AC
Min. switch-on time
(s)
15
Max. duty cycle
(min)
30
Detection angle horizontal
(°)
0 - 360
Response value luminosity
(lx)
5 - 1000
Max. switching power
(W)
2300
Temperature
(°C)
-25 - 55
Max. starting current
(A)
10
Substation input
No
Frequency
(Hz)
50 - 50
With alarm function
No
Height
(mm)
62
Depth
(mm)
80
Sensor type
Passive infrared
With DALI interface
No
With remote control
No
Switch-off delay
(s)
15
Switching-on delay
(s)
0
Suitable for C-load
No
Number of switching zones
1
Forced switch on
No
Scan angle
(°)
360
Max. presence range
(m²)
113
Suitable for ceiling mounting
Yes
Connection type
Blade terminal
Anti-bacterial treatment
No
Impact strength
IK04
Min. starting current
(A)
0.01
Diameter
(mm)
80
Built-in depth
(mm)
50
Built-in length
(mm)
62
Built-in diameter
(mm)
60
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Max. switching power LED
(W)
400
Nominal voltage
(V)
230 - 230
Suitable for wall mounting
No
No
No
With connection cable
Yes
Length of connection cable
(mm)
1000
Stock and logistics
Height
160 mm
Width
135 mm
Depth
195 mm
Packaging
box
Weight
421 GRM
