ASN Sontheimer
A531830
Switch disconnector
Manufacturer part number: A531830
Serie: NLT
Type: NLT315/4E/Z20-GB/Z1
EAN-code: 4034656182014
SKU Omnical: 1701097
Stock: 0.
Estimated lead time: 14 days *
PreOrder
T36
$
608.36
per item
$
512.85
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

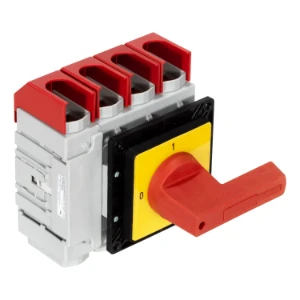

A531830 ASN Sontheimer Switch disconnector
ASN Sontheimer Switch disconnector Hoofdschakelaar nood-uit 315A 4P 4-Gats Frontmontage
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated permanent current Iu
(A)
315
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
Yes
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
(V)
690
Rated operation power at AC-23, 400 V
(kW)
132
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
50
Suitable for floor mounting
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Turn button
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Version as reversing switch
No
Rated operating voltage
(V)
24 - 690
Rated operation power at AC-3, 400 V
(kW)
110
Rated short-time withstand current lcw
(kA)
4000
Switching power at 400 V
(kW)
110
Colour control element
Red
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
224
Degree of protection (NEMA)
Other
With pre-assembled cabling
No
Width in number of modular spacings
0
Suitable for floor mounting
No
Colour housing
Other
Material housing
Plastic
Stock and logistics
Packaging
box
HS code
85365080
