Attema
AT1019
Box/housing for built-in mounting in the wall/ceiling
Manufacturer part number: AT1019
Serie: CA70R
Type: 1019
EAN-code: 08712259314419
SKU Omnical: 1094085
Stock: 0.
Estimated lead time: 5 days *
PreOrder
B02
$
1,092.79
per 100 items
$
569.34
per 100 items
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

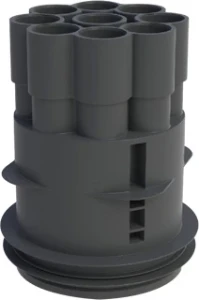

AT1019 Attema Box/housing for built-in mounting in the wall/ceiling
Attema Box/housing for built-in mounting in the wall/ceiling CA70R Centraaldoos 16/19 mm met tape ?16/19 mm
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
Other
Shape
Round
Construction type
Central conduit box
Model
Single
Equipped with
None
Diameter
(mm)
78
Inner depth
(mm)
70
For number of electric fittings
0
With screws
No
For tube diameter
16/19 mm
Pipe locking
Yes
Inlet from the rear
Yes
Number of inlets
9
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Grey
Cover
None
Cover attachment
Screwed
Sealable
No
With screening
No
Air tight
No
Max. conductor cross section
(mm²)
6
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
With nail lugs
No
Provided with revolving ring
No
Connectable
No
Housing feed-through by break-out opening
No
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking optional
No
Number of included spouts
0
Stock and logistics
Height
450 mm
Width
390 mm
Depth
590 mm
Packaging
item
Weight
9.94 kg
Country of Origin
NL
