3802670
Light scanner with background masking
Manufacturer part number: 3802670
Serie:
Type: T18-2VPFF100-Q8
EAN-code: 662488018641
SKU Omnical: 3369346
Stock: 0.
Estimated lead time: 59 days *
PreOrder
T05
$
248.26
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3802670 Banner Light scanner with background masking
Banner Light scanner with background masking Foto-elektrische sensor, diffuse sensor met vaste achtergrondonderdruk
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Adjustment range
(mm)
0 - 100
Rated switching distance
(mm)
100
Max. switching distance
(mm)
100
Setting procedure
Other
Type of electric connection
Connector M12
Type of switching output
PNP
Type of switch function
Change-over contact (NO/NC)
Construction type housing
Cuboid

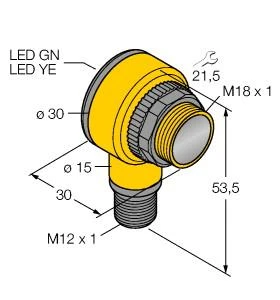

Width sensor
(mm)
30
Diameter sensor
(mm)
18
Height of sensor
(mm)
54
Length of sensor
(mm)
30
Material of optical surface
Plastic
Material housing
Plastic
Min. reflector distance
(mm)
0
Ambient temperature
(°C)
-40 - 70
Response time
(ms)
1.5
Wavelength of the sensor
(nm)
624
Type of light
Infrared light
Material of cable sheath
Polyvinyl chloride (PVC)
Suitable for safety functions
No
Degree of protection (IP)
IP67
Stock and logistics
Height
0.045 m
Width
0.03 m
Depth
0.03 m
Packaging
Package
Weight
0.031 kg
HS code
85365019
Country of Origin
US
