Benning
044088
Multimeter
Manufacturer part number: 044088
Serie: Test en meetapparatuur
Type: 044088
EAN-code: 4014651440883
SKU Omnical: 2487650
Stock: 0.
Estimated lead time: 6 days *
PreOrder
G31
€
599,73
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

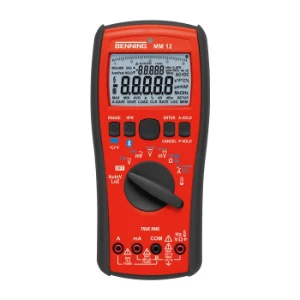

044088 Benning Multimeter
Benning Multimeter BENNING MM 12 Digitale Multimeter TRUE RMS
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Indication
Analogue/digital
Multiple display
Yes
Measuring range selection
Manual/automatic
Max. voltage measuring range, AC
(V)
1000
Lowest resolution, AC voltage
0.01 mV
Max. voltage measuring range, DC
(V)
1000
Lowest resolution, DC voltage
0.01 mV
Max. current measuring range, AC
(A)
10
Lowest resolution, AC current
10 µA
Max. current measuring range, DC
(A)
10
Lowest resolution, DC current
10 µA
Max. resistance measuring range
(M Ohm)
40
Lowest resolution, resistance
0.1 Ohm
Resistance test/diode test
Yes
Capacitance measurement
Yes
Frequency measurement
Yes
With decibel measurement (dB)
Yes
Relative value measurement
Yes
Inductance measurement
No
With conductivity measurement
No
Data hold
Yes
Max. value storage
Yes
Min. value storage
Yes
Peak value memory
Yes
Duty cycle measurements
Yes
Measured value memory
Yes
Interface
Yes
Measuring circuit category
CAT IV
Temperature measurement TC
Yes
Max. temperature measuring range
(°C)
1200
Lowest resolution temperature
0.1 °C
Max. capacitance measuring range
(µF)
40000
Lowest resolution, capacitance
0.00001 µF
Max. frequency measuring range
(kHz)
100
Lowest resolution, frequency
0.1 Hz
Continuity test
Yes
Rotational speed measuring
No
Bluetooth interface
Yes
IR interface
No
Automatic circuit breaker
No
Max. voltage measuring circuit category
(V)
600
With display backlight
Yes
Temperature measurement
Yes
Degree of protection (IP)
IP30
Scaling bar graph lineair
Yes
Scaling bar graph logarithmic
No
Relative accuracy of measurement
(%)
0.5
Current supply
Battery
Stock and logistics
Height
10 cm
Width
17.5 cm
Depth
23.5 cm
Packaging
box
Weight
1290 g
HS code
90303100
