Carlo Gavazzi
PA18CRT16

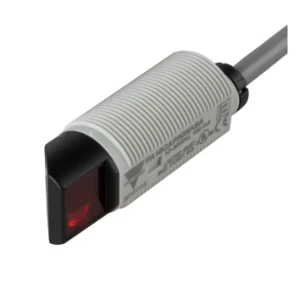

Through beam photoelectric sensor
Manufacturer part number: PA18CRT16
Serie: PA18
Type: CG FOTOCEL ZENDER-ONTVANGER
EAN-code: 5709870382234
SKU Omnical: 3310542
Stock: 0.
Estimated lead time: 7 days *
PreOrder
SSL Connection
WorldWide Shipping
PA18CRT16 Carlo Gavazzi Through beam photoelectric sensor
Carlo Gavazzi Through beam photoelectric sensor CG FOTOCEL ZENDER, KUNSTSTOF, M18, 16.0 MTR RADIAAL, KABEL
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Scope of delivery of the one-way system
Transmitter
Max. opening angle
(°)
3
With time function
No
Rated switching distance
(mm)
16000
Max. switching distance
(mm)
16000
Analogue output 0 V ... 10 V
No
Analogue output 0 mA ... 20 mA
No
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Manual adjustment
With communication interface analogue
No
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface Ethernet
No
With communication interface INTERBUS
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSD
No
With communication interface SSI
No
Type of electric connection
Cable
Construction type housing
Cylinder, screw-thread
Diameter sensor
(mm)
18
Length of sensor
(mm)
50
Material of optical surface
Plastic
Material housing
Plastic
Ambient temperature
(°C)
-25 - 60
Rated control supply voltage at DC
(V)
10 - 30
Voltage type
DC
Wavelength of the sensor
(nm)
850
Type of light
Infrared light
Material of cable sheath
Polyvinyl chloride (PVC)
Degree of protection (IP)
Other
Stock and logistics
Height
12 mm
Width
290 mm
Depth
200 mm
Packaging
item
Weight
45 g
HS code
85365019
Country of Origin
LT
