Carlo Gavazzi
PD70CNT12M5ML
Through beam photoelectric sensor
Manufacturer part number: PD70CNT12M5ML
Serie: PD70
Type: CG FOTOCEL ZENDER-ONTVANGER
EAN-code: 5709870381183
SKU Omnical: 3310774
Stock: 0.
Estimated lead time: 7 days *
PreOrder
SSL Connection
WorldWide Shipping

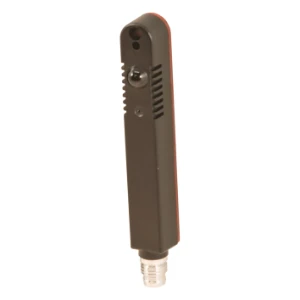

PD70CNT12M5ML Carlo Gavazzi Through beam photoelectric sensor
Carlo Gavazzi Through beam photoelectric sensor CG FOTOCEL ZENDER KUNSTSTOF 11,6X11,53X70MM 12.0 MTR MUTE LAAG CONN
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Scope of delivery of the one-way system
Transmitter
Max. opening angle
(°)
5
With time function
No
Rated switching distance
(mm)
12000
Max. switching distance
(mm)
12000
Analogue output 0 V ... 10 V
No
Analogue output 0 mA ... 20 mA
No
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Manual adjustment
With communication interface analogue
No
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface Ethernet
No
With communication interface INTERBUS
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSD
No
With communication interface SSI
No
Type of interface for safety communication
Other
Type of electric connection
Connector M8
Construction type housing
Cuboid
Width sensor
(mm)
11.6
Height of sensor
(mm)
11.6
Length of sensor
(mm)
70
Material of optical surface
Plastic
Material housing
Plastic
Ambient temperature
(°C)
-25 - 55
Type of safety according to IEC 61496-1
2
Rated control supply voltage at DC
(V)
10 - 30
Voltage type
DC
Wavelength of the sensor
(nm)
850
Type of light
Infrared light
Degree of protection (IP)
IP67
Stock and logistics
Height
12 mm
Width
290 mm
Depth
200 mm
Packaging
item
Weight
90 g
HS code
85365019
Country of Origin
LT
