Comelit
1536
DC-power supply
Manufacturer part number: 1536
Serie: Accesoires
Type: Universeel
EAN-code: 8023903001952
SKU Omnical: 3312864
Stock: 0.
Estimated lead time: 7 days *
PreOrder
C92
€
235,50
per item
€
210,30
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

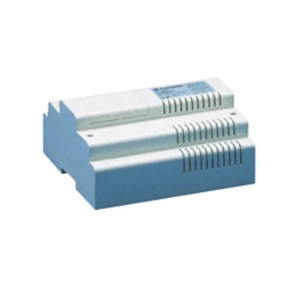

1536 Comelit DC-power supply
Comelit DC-power supply Voedingstrafo extra monitoren input 125/220/240Vac / output 24Vdc 1A (
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Voltage type of supply voltage
DC
1st secondary output voltage
(V)
22 - 24
2nd secondary output voltage
(V)
0 - 0
3rd secondary output voltage
(V)
0 - 0
Nominal value output current 1
(A)
1
Max. output current 1
(A)
1.4
Width
(mm)
144
Max. output current 2
(A)
0
Max. output current 3
(A)
0
Secondary voltage adjustable
No
Short-circuit-proof
No
Rated supply voltage at AC 50 Hz
(V)
220 - 240
Rated supply voltage at AC 60 Hz
(V)
0 - 0
Rated supply voltage at DC
(V)
20 - 24
Output voltage stabilized
No
Power consumption
(VA)
35
Power output
(W)
30
Stabilized
No
Type of electric connection
Screw-/spring clamp connection
Rail mounting possible
Yes
Wall mounting possible
Yes
Modular version
Yes
Width in number of modular spacings
8
Built-in height
(mm)
57
Direct mounting possible
Yes
Height
(mm)
94
Depth
(mm)
51.5
Suitable for safety functions
No
Performance level according to EN ISO 13849-1
None
Degree of protection (IP)
IP20
Nominal value output voltage 1
(V)
24
Nominal value output voltage 2
(V)
0
Nominal value output voltage 3
(V)
0
Nominal value output current 2
(A)
0
Nominal value output current 3
(A)
0
Built-in width
(mm)
144
SIL according to IEC 61508
None
Degree of protection (NEMA)
1
Stock and logistics
Height
9.4 cm
Width
14.6 cm
Depth
14.6 cm
Packaging
box
Weight
1.11 kg
HS code
85044090
