Comelit
1596B
DC-power supply
Manufacturer part number: 1596B
Serie: 316
Type: Simplebus
EAN-code: 8023903344912
SKU Omnical: 3312866
Stock: 0.
Estimated lead time: 7 days *
PreOrder
C92
€
262,00
per item
€
233,97
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

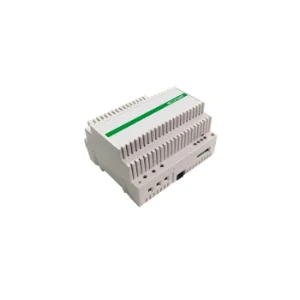

1596B Comelit DC-power supply
Comelit DC-power supply Voedingstrafo 316 Touch, 230Vac, 33Vdc, 60W
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Voltage type of supply voltage
DC
1st secondary output voltage
(V)
29.7 - 36.3
2nd secondary output voltage
(V)
0 - 0
3rd secondary output voltage
(V)
0 - 0
Nominal value output current 1
(A)
0.9
Max. output current 1
(A)
1.82
Width
(mm)
118
Max. output current 2
(A)
0
Max. output current 3
(A)
0
Secondary voltage adjustable
No
Short-circuit-proof
Yes
Rated supply voltage at AC 50 Hz
(V)
88 - 264
Rated supply voltage at AC 60 Hz
(V)
0 - 0
Rated supply voltage at DC
(V)
31 - 34
Output voltage stabilized
No
Power consumption
(VA)
72
Power output
(W)
60
Stabilized
No
Type of electric connection
Screw-/spring clamp connection
Rail mounting possible
Yes
Wall mounting possible
Yes
Modular version
Yes
Width in number of modular spacings
7
Built-in height
(mm)
62
Direct mounting possible
Yes
Height
(mm)
93
Depth
(mm)
62
Suitable for safety functions
No
Performance level according to EN ISO 13849-1
None
Degree of protection (IP)
IP20
Nominal value output voltage 1
(V)
33
Nominal value output voltage 2
(V)
0
Nominal value output voltage 3
(V)
0
Nominal value output current 2
(A)
0
Nominal value output current 3
(A)
0
Built-in width
(mm)
108
SIL according to IEC 61508
None
Degree of protection (NEMA)
1
Stock and logistics
Height
6 cm
Width
11 cm
Depth
9 cm
Packaging
box
Weight
0.307 kg
HS code
85044090
