Concord
2059961
Downlight/spot/floodlight
Manufacturer part number: 2059961
Serie:
Type: EQNX 165 1925LMIHCL TW SSC BLK
EAN-code: 5025768599615
SKU Omnical: 4216211
Stock: 0.
Estimated lead time: 44 days *
PreOrder
X20
€
775,00
per item
€
564,98
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

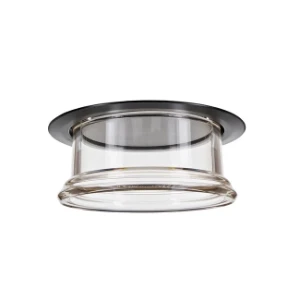

2059961 Concord Downlight/spot/floodlight
Concord Downlight/spot/floodlight EQNX 165 1925LMI HCL TW SSC ZW
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED exchangeable
Type of control gear
LED operating device current-controlled
With control gear
Yes
Width
(mm)
99
Nominal voltage
(V)
220 - 240
Material housing
Aluminium
Colour housing
Black
Reflector
None
Beam angle
Wide beam 41-80°
Length
(mm)
99
Height/depth
(mm)
99
Outer diameter
(mm)
175
Protection class
II
Degree of protection (IP)
IP20
Impact strength
IK02
Luminaire with limited surface temperature, sign "D“
No
With movement sensor
No
With light source
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With light sensor
No
Max. system power
(W)
25
Colour temperature
(K)
4000 - 4000
Voltage type
AC/DC
Rated luminous flux according to IEC 62722-2-1
(lm)
1925
Colour rendering index CRI
90-100
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for low voltage cable system
No
Surface protection
Powder coating
Material cover
Other
Surface brushed
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
Yes
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
No
Light distributor
Diffuser lens/optic/panel
Light outlet
Direct/indirect
Total harmonic distortion
10
Rated life time L70/B50 at 25 °C
(h)
100000
Rated ambient temperature according to IEC62722-2-1
(°C)
1 - 25
Luminous flux
(lm)
1775 - 1775
Power factor
0.96
Type of wiring
Suitable for through wiring
Number of poles
2
Conductor cross section
(mm²)
2.5
Connectable conductor cross section
(mm²)
0.5 - 2.5
Connection type
Push-in clamp
Emergency power supply integrated
No
Luminaire efficacy
(lm/W)
77
Suitable for workplace according to EN 12464-1
Yes
Covering of the luminaire with thermally insulating material possible
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Photobiological safety according to EN 62471
RG1
Colour consistency (McAdam ellipse)
SDCM3
Unified Glare Ratio (UGR)
19
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Dimming DALI-2
No
Exchangeable control gear
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
(%)
0
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Max. number of luminaires per miniature circuit breaker B16
16
Max. number of luminaires per miniature circuit breaker C16
26
Suitable for wall mounting
No
E
Operation by Bluetooth
Yes
Stock and logistics
Height
20 cm
Width
25 cm
Depth
20 cm
Packaging
box
Weight
1.75 kg
HS code
94051940
