Conta-Clip
1001.2
Feed-through terminal block
Manufacturer part number: 1001.2
Serie: R-Serie
Type: Schroefaansluiting
EAN-code: 4044211000240
SKU Omnical: 1004942
Stock:
99 items.
Delivery time: 1-2 business days.
InStock
XRQ
€
109,69
per 100 items
€
71,30
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1001.2 Conta-Clip Feed-through terminal block

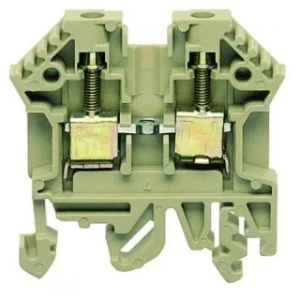

Conta-Clip Feed-through terminal block RK 2.5-4 PA BEIGE
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 6
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section solid-core
(mm²)
0.2 - 6
Connectable conductor cross section multi-wired
(mm²)
0.2 - 6
Rated current In
(A)
32
Width
(mm)
6
Rated voltage
(V)
800
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Connection position
Sideways
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-40 - 105
Inflammability class of insulation material according to with UL94
V2
Width/grid dimension
(mm)
6
Height at lowest possible mounting height
(mm)
47
Length
(mm)
48
Explosion-tested version 'Ex e'
No
Closing plate required
Yes
Colour
Beige
Internally connected stages
No
Height
(mm)
47
Suitable for conductor material
Aluminium/copper
Stock and logistics
Height
57 mm
Width
610 mm
Depth
58 mm
Packaging
box
Weight
1146.2 g
HS code
85369010
Country of Origin
DE
