Conta-Clip
1005.7

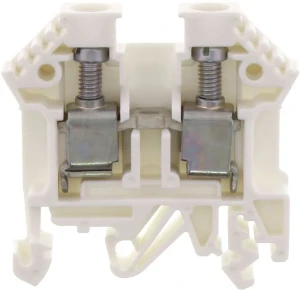

Feed-through terminal block
Manufacturer part number: 1005.7
Serie:
Type: RK 6-10 PA WIT
EAN-code: 4044211001285
SKU Omnical: 4234972
Stock: 0.
Estimated lead time: 5 days *
PreOrder
XRQ
€
162,14
per 100 items
€
105,39
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1005.7 Conta-Clip Feed-through terminal block
Conta-Clip Feed-through terminal block RK 6-10 PA WIT
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 10
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.2 - 10
Connectable conductor cross section solid-core
(mm²)
0.2 - 10
Connectable conductor cross section multi-wired
(mm²)
0.2 - 10
Rated current In
(A)
57
Width
(mm)
8
Rated voltage
(V)
800
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-40 - 105
Inflammability class of insulation material according to with UL94
V2
Explosion-tested version 'Ex e'
No
Closing plate required
Yes
Colour
White
Internally connected stages
No
Height
(mm)
47
Stock and logistics
Height
57 mm
Width
810 mm
Depth
58 mm
Packaging
box
Weight
1699.5 GRM
HS code
85369010
Country of Origin
CZ
