Conta-Clip
1010.5

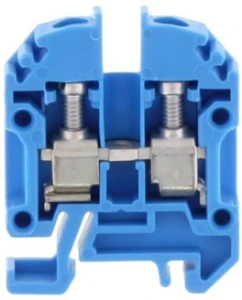

Feed-through terminal block
Manufacturer part number: 1010.5
Serie:
Type:
EAN-code: 4044211002381
SKU Omnical: 3382909
Stock: 0.
Estimated lead time: 5 days *
PreOrder
XRQ
€
1,01
per item
€
0,66
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1010.5 Conta-Clip Feed-through terminal block
Conta-Clip Feed-through terminal block RK 1.5-4/15 PA BLAUW
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section solid-core
(mm²)
0.2 - 4
Connectable conductor cross section multi-wired
(mm²)
0.2 - 4
Rated current In
(A)
32
Width
(mm)
6
Rated voltage
(V)
500
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 15 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-40 - 105
Inflammability class of insulation material according to with UL94
V2
Explosion-tested version 'Ex e'
No
Closing plate required
Yes
Colour
Blue
Internally connected stages
No
Suitable for conductor material
Aluminium/copper
Stock and logistics
Height
44.5 mm
Width
610 mm
Depth
37 mm
Packaging
box
Weight
620.4 g
HS code
85369010
Country of Origin
CZ
