Conta-Clip
1020.7

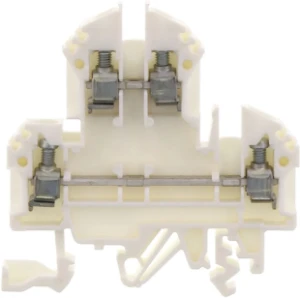

Feed-through terminal block
Manufacturer part number: 1020.7
Serie:
Type: RKD 4 PA WIT
EAN-code: 4044211004682
SKU Omnical: 4235003
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XRQ
€
298,53
per 100 items
€
194,04
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1020.7 Conta-Clip Feed-through terminal block
Conta-Clip Feed-through terminal block RKD 4 PA WIT
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section solid-core
(mm²)
0.2 - 4
Connectable conductor cross section multi-wired
(mm²)
0.2 - 4
Rated current In
(A)
32
Width
(mm)
6
Rated voltage
(V)
500
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
2
Number of clamp positions per level
4
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-40 - 105
Inflammability class of insulation material according to with UL94
V2
Explosion-tested version 'Ex e'
No
Closing plate required
Yes
Colour
White
Internally connected stages
No
Height
(mm)
61
Suitable for conductor material
Aluminium/copper
Stock and logistics
Height
71 mm
Width
610 mm
Depth
70.2 mm
Packaging
box
Weight
1564.2 g
HS code
85369010
Country of Origin
CZ
