Conta-Clip
1261.2
Feed-through terminal block
Manufacturer part number: 1261.2
Serie: R-Serie
Type: Schroefaansluiting
EAN-code: 4044211035433
SKU Omnical: 1006991
Stock: 0.
Estimated lead time: 5 days *
PreOrder
XRR
€
374,59
per 100 items
€
280,94
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

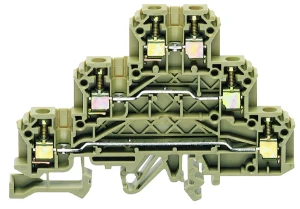

1261.2 Conta-Clip Feed-through terminal block
Conta-Clip Feed-through terminal block IKD 2.5 BEIGE
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.2 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.2 - 4
Connectable conductor cross section multi-wired
(mm²)
0.2 - 4
Rated current In
(A)
24
Width
(mm)
5
Rated voltage
(V)
250
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Connection position
Sideways
Number of levels
3
Number of clamp positions per level
6
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-40 - 105
Inflammability class of insulation material according to with UL94
V2
Width/grid dimension
(mm)
5
Height at lowest possible mounting height
(mm)
58.3
Length
(mm)
84.8
Explosion-tested version 'Ex e'
No
Closing plate required
Yes
Colour
Beige
Internally connected stages
No
Height
(mm)
58.3
Suitable for conductor material
Aluminium/copper
Stock and logistics
Height
68.3 mm
Width
260 mm
Depth
94.8 mm
Packaging
box
Weight
947.1 g
HS code
85369010
Country of Origin
CZ
