Conta-Clip
1425.2
Feed-through terminal block
Manufacturer part number: 1425.2
Serie: R-Serie
Type: Schroefaansluiting
EAN-code: 4044211044701
SKU Omnical: 1008475
Stock:
18 items.
Delivery time: 1-2 business days.
InStock
XRR
€
717,19
per 100 items
€
537,89
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

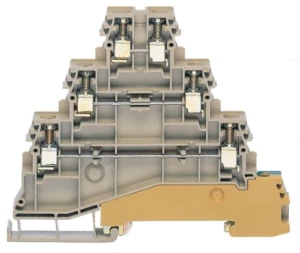

1425.2 Conta-Clip Feed-through terminal block
Conta-Clip Feed-through terminal block VMAK 2.5 PA BEIGE
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.2 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.2 - 4
Connectable conductor cross section multi-wired
(mm²)
0.2 - 4
Rated current In
(A)
24
Width
(mm)
6
Rated voltage
(V)
400
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
3
Number of clamp positions per level
7
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-40 - 105
Inflammability class of insulation material according to with UL94
V2
Explosion-tested version 'Ex e'
No
Closing plate required
Yes
Colour
Beige
Internally connected stages
No
Height
(mm)
77
Suitable for conductor material
Aluminium/copper
Stock and logistics
Height
57 mm
Width
510 mm
Depth
58 mm
Packaging
box
Weight
781 g
HS code
85369010
Country of Origin
DE
