Conta-Clip
17048.5
Feed-through terminal block
Manufacturer part number: 17048.5
Serie:
Type: RKDG 4/SV BLAUW
EAN-code: 4044211155896
SKU Omnical: 4236108
Stock: 0.
Estimated lead time: 5 days *
PreOrder
XRR
€
399,44
per 100 items
€
299,58
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

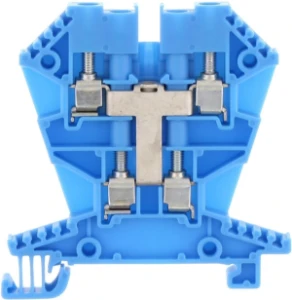

17048.5 Conta-Clip Feed-through terminal block
Conta-Clip Feed-through terminal block RKDG 4/SV BLAUW
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section solid-core
(mm²)
0.2 - 4
Connectable conductor cross section multi-wired
(mm²)
0.2 - 4
Rated current In
(A)
32
Width
(mm)
6
Rated voltage
(V)
500
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
2
Number of clamp positions per level
4
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-40 - 105
Inflammability class of insulation material according to with UL94
V2
Explosion-tested version 'Ex e'
No
Closing plate required
Yes
Colour
Blue
Internally connected stages
Yes
Height
(mm)
61
Suitable for conductor material
Aluminium/copper
Stock and logistics
Height
57 mm
Width
610 mm
Depth
58 mm
Packaging
box
Weight
1190.2 g
HS code
85369010
Country of Origin
DE
