Conta-Clip
1747.0

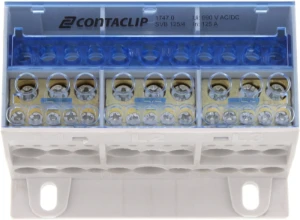

Rail terminal bar
Manufacturer part number: 1747.0
Serie: SVB-Serie
Type: SVB
EAN-code: 4044211143541
SKU Omnical: 1802103
Stock: 0.
Estimated lead time: 7 days *
PreOrder
XRV
$
45.00
per item
$
36.63
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1747.0 Conta-Clip Rail terminal bar
Conta-Clip Rail terminal bar SVB 125/4
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Connection type
Screwing
Width
(mm)
98
Nominal current
(A)
160
Mounting method
DIN-rail/screw
Height
(mm)
50
Depth
(mm)
74
Contact safe
Yes
Number of inputs
4
Number of outputs
31
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for fine strand conductors without cable end sleeve
Yes
Suitable for extra fine-strand conductors
Yes
Suitable for extra fine-strand conductors without cable end sleeve
Yes
Conductor cross section, input
(mm²)
6 - 35
Conductor cross section, output
(mm²)
1.5 - 16
Conductor cross section, input AWG
2 - 10
Conductor cross section, output AWG
6 - 16
Stock and logistics
Height
63 mm
Width
108 mm
Depth
84 mm
Packaging
box
Weight
377.3 GRM
HS code
85369010
Country of Origin
FR
