Disano
1140240041
Ceiling-/wall luminaire
Manufacturer part number: 1140240041
Serie: IBIS
Type: 1140240041 33W/4000K
EAN-code: 8012952158991
SKU Omnical: 4166113
Stock: 0.
Estimated lead time: 24 days *
PreOrder
D70
€
784,00
per item
€
571,54
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

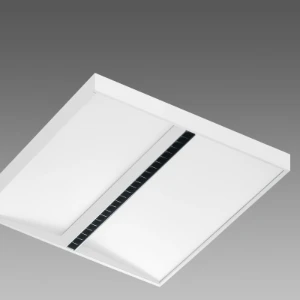

1140240041 Disano Ceiling-/wall luminaire
Disano Ceiling-/wall luminaire 716 IBIS C CLD CELL-DALI CRI90
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
Yes
Width
(mm)
600
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Suitable for number of lamps
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
Yes
Nominal voltage
(V)
220 - 240
Colour temperature
(K)
4000 - 4000
Material housing
Steel
Colour housing
White
Suitable for light line configuration
Yes
Suitable for workplace according to EN 12464-1
Yes
Light sharing
Symmetric
Light outlet
Direct
Length
(mm)
600
Height/depth
(mm)
70
With movement sensor
Yes
With light sensor
Yes
Protection class
I
Degree of protection (IP)
IP40
Impact strength
IK06
Luminaire with limited surface temperature, sign "D“
Yes
Covering of the luminaire with thermally insulating material possible
Yes
Max. system power
(W)
33
With air slots
Yes
Voltage type
AC
Colour of light
White
Colour rendering index CRI
90-100
Dimming 0-10 V
Yes
Dimming 1-10 V
Yes
Dimming DALI
Yes
Dimming DMX
Yes
Dimming DSI
Yes
Dimming potentiometer (integrated)
Yes
Dimming LineSwitch
Yes
Dimming manufacturer's proprietary system
Yes
Dimming mains voltage modulation
Yes
Dimming phase cut-off
Yes
Dimming phase cut-on
Yes
Dimming programmable
Yes
Dimming RF
Yes
Dimming Sine Wave Reduction
Yes
Dimming Touch and Dim
Yes
Dimming Zigbee
Yes
Dimming with push-button
Yes
Operation by Bluetooth
Yes
No dim function
Yes
Light distributor
Diffuser lens/optic/panel
Colour consistency (McAdam ellipse)
SDCM3
Rated ambient temperature according to IEC62722-2-1
(°C)
-10 - 35
Emergency power supply integrated
Yes
Filament test according to IEC 60695-2-11
None
Power factor
0.9
Type of wiring
Ending
Number of poles
2
Connection type
Push-in clamp
Photobiological safety according to EN 62471
RG0
Unified Glare Ratio (UGR)
16
Dimming DALI-2
Yes
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
Yes
Exchangeable control gear
Yes
Constant light output (CLO)
Yes
Colour temperature adjustable
No
Beam angle adjustable
No
Stock and logistics
Height
0.62 m
Width
0.615 m
Depth
0.085 m
Packaging
box
Weight
6.54 kg
HS code
94051990
