Disano
1535390041

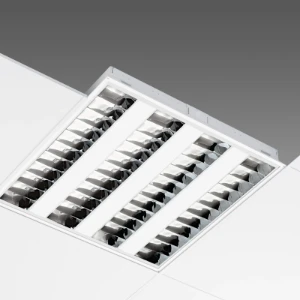

Ceiling-/wall luminaire
Manufacturer part number: 1535390041
Serie: MINICOMFORT
Type: 1535390041 37W/4000K
EAN-code: 8012952153286
SKU Omnical: 4166148
Stock: 0.
Estimated lead time: 24 days *
PreOrder
D70
€
454,00
per item
€
330,97
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1535390041 Disano Ceiling-/wall luminaire
Disano Ceiling-/wall luminaire 841 MINICOMFORT CLD DALI CRI90
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
Yes
Width
(mm)
596
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Suitable for number of lamps
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
Yes
Nominal voltage
(V)
220 - 240
Colour temperature
(K)
4000 - 4000
Material housing
Steel
Colour housing
White
Suitable for light line configuration
Yes
Material cover
Other
Suitable for workplace according to EN 12464-1
Yes
Type of grid
High-gloss
Light sharing
Symmetric
Beam angle
Medium beam 21-40°
Light outlet
Direct
Length
(mm)
596
Height/depth
(mm)
60
Built-in length
(mm)
580
Built-in width
(mm)
580
Built-in height/depth
(mm)
-60
Built-in diameter
(mm)
0
With movement sensor
Yes
With light sensor
Yes
Protection class
I
Degree of protection (IP)
IP20
Impact strength
IK07
Luminaire with limited surface temperature, sign "D“
Yes
Covering of the luminaire with thermally insulating material possible
Yes
Max. system power
(W)
37
With air slots
Yes
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
3901
Colour of light
White
Colour rendering index CRI
90-100
Surface protection housing
Powder coating
Dimming 0-10 V
Yes
Dimming 1-10 V
Yes
Dimming DALI
Yes
Dimming DMX
Yes
Dimming DSI
Yes
Dimming potentiometer (integrated)
Yes
Dimming LineSwitch
Yes
Dimming manufacturer's proprietary system
Yes
Dimming mains voltage modulation
Yes
Dimming phase cut-off
Yes
Dimming phase cut-on
Yes
Dimming programmable
Yes
Dimming RF
Yes
Dimming Sine Wave Reduction
Yes
Dimming Touch and Dim
Yes
Dimming Zigbee
Yes
Dimming with push-button
Yes
Operation by Bluetooth
Yes
No dim function
Yes
Light distributor
Other
Colour consistency (McAdam ellipse)
SDCM3
Rated ambient temperature according to IEC62722-2-1
(°C)
-20 - 35
Emergency power supply integrated
Yes
Filament test according to IEC 60695-2-11
None
Luminaire efficacy
(lm/W)
111
Power factor
0.95
Type of wiring
Ending
Number of poles
3
Conductor cross section
(mm²)
1.5
Connection type
Push-in clamp
Photobiological safety according to EN 62471
RG0
Unified Glare Ratio (UGR)
16
Dimming DALI-2
Yes
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
Yes
Exchangeable control gear
Yes
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)
(%)
70
Constant light output (CLO)
Yes
Colour temperature adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Stock and logistics
Height
0.61 m
Width
0.61 m
Depth
0.07 m
Packaging
box
Weight
3.7 kg
HS code
94051990
