Disano
16244600
Ceiling-/wall luminaire
Manufacturer part number: 16244600
Serie: FORMA
Type: 162446-00 63W/4000K
EAN-code: 8012952116830
SKU Omnical: 4166169
Stock: 0.
Estimated lead time: 24 days *
PreOrder
D74
$
782.19
per item
$
570.22
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

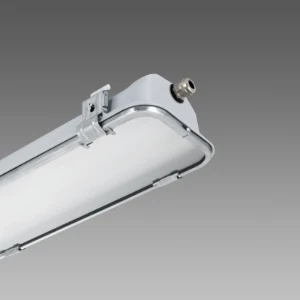

16244600 Disano Ceiling-/wall luminaire
Disano Ceiling-/wall luminaire 995 FORMA CLD CELL
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Width
(mm)
190
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Colour temperature
(K)
4000 - 4000
Material housing
Steel
Colour housing
Grey
Suitable for light line configuration
No
Material cover
Glass matt/satinized
Suitable for workplace according to EN 12464-1
No
Type of grid
None
Light sharing
Symmetric
Beam angle
Medium beam 21-40°
Light outlet
Direct
Length
(mm)
1593
Height/depth
(mm)
92
With movement sensor
No
With light sensor
No
Protection class
I
Degree of protection (IP)
IP65
Impact strength
IK08
Luminaire with limited surface temperature, sign "D“
No
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
61
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
7676
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Lacquered
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Operation by Bluetooth
No
No dim function
Yes
Light distributor
Other
Filament test according to IEC 60695-2-11
None
Suitable for lamp power
(W)
56 - 56
Luminaire efficacy
(lm/W)
122
Power factor
0.9
Type of wiring
Ending
Number of poles
3
Connection type
Plug
Photobiological safety according to EN 62471
RG0
Dimming DALI-2
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Constant light output (CLO)
No
Colour temperature adjustable
No
Beam angle adjustable
No
Stock and logistics
Height
1.605 m
Width
0.205 m
Depth
0.11 m
Packaging
box
Weight
9.5 kg
HS code
94051990
