Disano
21456500
Downlight/spot/floodlight
Manufacturer part number: 21456500
Serie: RIGO
Type: 214565-00 8W/4000K
EAN-code: 8012952074451
SKU Omnical: 4164610
Stock: 0.
Estimated lead time: 24 days *
PreOrder
D71
$
194.56
per item
$
141.83
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

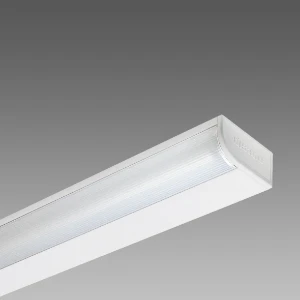

21456500 Disano Downlight/spot/floodlight
Disano Downlight/spot/floodlight 420 RIGO CLD
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Suitable for number of lamps
1
Lamp holder
Other
Type of control gear
LED operating device current-controlled
With control gear
Yes
Width
(mm)
80
Nominal voltage
(V)
220 - 240
Material housing
Aluminium
Colour housing
White
Light sharing
Symmetric
Beam angle
Wide beam 41-80°
Length
(mm)
430
Height/depth
(mm)
42
Outer diameter
(mm)
430
Protection class
I
Degree of protection (IP)
IP43
Impact strength
IK08
Luminaire with limited surface temperature, sign "D“
No
With movement sensor
No
With light source
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
With light sensor
No
Max. system power
(W)
8
Colour temperature
(K)
4000 - 4000
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
833
Colour of light
White
Colour rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Material cover
Plastic, opal
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Other
Light outlet
Direct
Power factor
0.9
Type of wiring
Ending
Number of poles
3
Conductor cross section
(mm²)
1.5
Connection type
Push-in clamp
Luminaire efficacy
(lm/W)
883
Suitable for workplace according to EN 12464-1
No
Covering of the luminaire with thermally insulating material possible
No
Filament test according to IEC 60695-2-11
None
Photobiological safety according to EN 62471
RG0
Colour consistency (McAdam ellipse)
SDCM3
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Dimming DALI-2
No
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
80
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Suitable for wall mounting
Yes
Operation by Bluetooth
No
Compatible with Casambi
No
Stock and logistics
Height
0.45 m
Width
0.102 m
Depth
0.064 m
Packaging
box
Weight
0.88 kg
HS code
94051990
