Disano
33004400

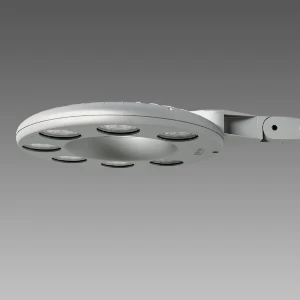

Luminaire for streets and places
Manufacturer part number: 33004400
Serie: DISCO
Type: 330044-00 107W/4000K
EAN-code: 8012952118407
SKU Omnical: 4165516
Stock: 0.
Estimated lead time: 24 days *
PreOrder
D72
€
2.046,00
per item
€
1.986,67
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
33004400 Disano Luminaire for streets and places
Disano Luminaire for streets and places 3331 DISCO 2 CLD CELL GRAFIET
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
Post top/side entry
Lamp type
LED not exchangeable
Lamp holder
Other
Material housing
Aluminium
Width
(mm)
680
Colour housing
Other
Material cover
Glass transparent
Suitable for number of lamps
1
Nominal voltage
(V)
220 - 240
Type of control gear
LED operating device current-controlled
With control gear
Yes
Degree of protection (IP)
IP66
Adjustable optics
No
Suitable for spigot size
(mm)
60 - 60
Impact strength
IK08
Protection class
II
With light source
Yes
Length
(mm)
790
Surface protection
Powder coating
Voltage type
AC
Nominal current
(mA)
530 - 530
Remote control
None
With radio control
No
Constant light output (CLO)
No
With light regulation program control
No
With connection cable
Yes
Cable length
(m)
0.5
Rated luminous flux according to IEC 62722-2-1
(lm)
14580
Colour of light
White
Colour temperature
(K)
4000 - 4000
Colour rendering index CRI
80-89
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Other
Luminaire with limited surface temperature, sign "D“
Yes
Rated ambient temperature according to IEC62722-2-1
(°C)
-30 - 40
Suitable for lamp power
(W)
141 - 141
Max. system power
(W)
116
Luminaire efficacy
(lm/W)
92
Power factor
0.9
Height/depth
(mm)
110
Diameter
(mm)
680
Type of wiring
Ending
Number of poles
2
Conductor cross section
(mm²)
1.5
Connection type
Screwed terminal
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
With light sensor
No
Operation by Bluetooth
No
Stock and logistics
Height
0.74 m
Width
0.72 m
Depth
0.155 m
Packaging
box
Weight
15.22 kg
HS code
94051990
