Disano
41316073
Downlight/spot/floodlight
Manufacturer part number: 41316073
Serie: CRIPTO
Type: 413160-73 115W/2200K
EAN-code: 8012952143805
SKU Omnical: 3359710
Stock: 0.
Estimated lead time: 24 days *
PreOrder
D76
€
850,00
per item
€
619,65
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

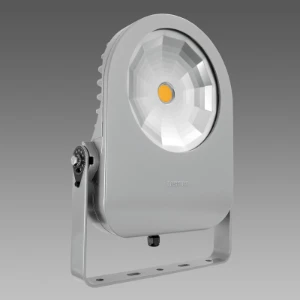

41316073 Disano Downlight/spot/floodlight
Disano Downlight/spot/floodlight 1728 CRIPTO CLD CELL GRAFIET
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Suitable for number of lamps
1
Lamp holder
None
Type of control gear
LED operating device current-controlled
With control gear
Yes
Width
(mm)
360
Nominal voltage
(V)
220 - 240
Material housing
Aluminium
Colour housing
Other
Reflector
Matt
Light sharing
Symmetric
Beam angle
Medium beam 21-40°
Length
(mm)
500
Height/depth
(mm)
82
Protection class
II
Degree of protection (IP)
IP66
Impact strength
IK08
Luminaire with limited surface temperature, sign "D“
No
With movement sensor
No
With light source
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Adjustability
Rotating and swivelling
With light sensor
No
Suitable for lamp power
(W)
129 - 129
Max. system power
(W)
127
Colour temperature
(K)
2200 - 2200
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
13767
Colour of light
Amber
Colour rendering index CRI
60-69
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for low voltage cable system
No
Surface protection
Powder coating
Material cover
Glass transparent
Surface brushed
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Other
Light outlet
Direct
Rated ambient temperature according to IEC62722-2-1
(°C)
-20 - 40
Luminous flux
(lm)
13767 - 13767
Power factor
0.92
Type of wiring
Ending
Number of poles
2
Conductor cross section
(mm²)
1.5
Connectable conductor cross section
(mm²)
1.5 - 2.5
Connection type
Other
Emergency power supply integrated
No
Luminaire efficacy
(lm/W)
108
Suitable for workplace according to EN 12464-1
No
Covering of the luminaire with thermally insulating material possible
No
Filament test according to IEC 60695-2-11
None
Photobiological safety according to EN 62471
RG0
Colour consistency (McAdam ellipse)
SDCM3
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Dimming DALI-2
No
Exchangeable control gear
No
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
80
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
(%)
70
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Suitable for wall mounting
Yes
Operation by Bluetooth
No
Stock and logistics
Height
0.545 m
Width
0.4 m
Depth
0.085 m
Packaging
box
Weight
7.92 kg
HS code
94051990
