Disano
51063139

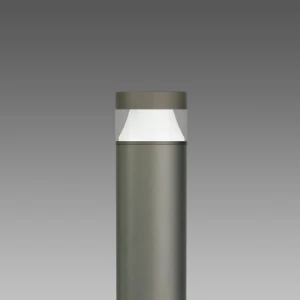

Luminaire bollard
Manufacturer part number: 51063139
Serie: FARO
Type: 510631-39 14W/3000K
EAN-code: 8012952159424
SKU Omnical: 4165625
Stock: 0.
Estimated lead time: 24 days *
PreOrder
D78
€
858,00
per item
€
625,48
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
51063139 Disano Luminaire bollard
Disano Luminaire bollard 1797 FARO 5 CLD CELL GRAFIET
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Material housing
Aluminium
Colour housing
Other
Material cover
Plastic, transparent
Suitable for number of lamps
1
Nominal voltage
(V)
220 - 240
Degree of protection (IP)
IP65
Impact strength
IK10
Protection class
II
Diameter
(mm)
180
With light source
Yes
Type of luminaire
Bollard luminaire
Type of control gear
LED operating device current-controlled
With control gear
Yes
Voltage type
AC
With light sensor
No
With movement sensor
No
Rated luminous flux according to IEC 62722-2-1
(lm)
1395
Colour of light
White
Colour temperature
(K)
3000 - 3000
Colour rendering index CRI
80-89
With base plate
Yes
Housing material quality
Other
Surface protection
Powder coating
Light distributor
Reflector
Max. system power
(W)
14
Light sharing
Asymmetric
Light outlet
Direct/indirect
Luminaire efficacy
(lm/W)
98
Beam angle
Extreme wide beam >80°
Power factor
0.9
Height/depth
(mm)
875
Type of wiring
Ending
Number of poles
2
Connection type
Screwed terminal
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Exchangeable control gear
Yes
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
80
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
20
Constant light output (CLO)
Yes
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
C
(lm)
1395 - 1395
Type of power supply
Mains power supply
Stock and logistics
Height
875 mm
Width
180 mm
Depth
180 mm
Packaging
box
Weight
6.8 kg
HS code
94051990
