Disano
53078573

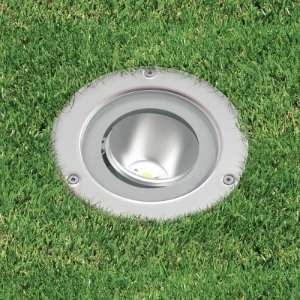

In-ground luminaire
Manufacturer part number: 53078573
Serie: MINIFLOOR
Type: 530785-73 15W/2200K
EAN-code: 8012952144321
SKU Omnical: 4165830
Stock: 0.
Estimated lead time: 24 days *
PreOrder
D78
€
745,00
per item
€
543,10
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
53078573 Disano In-ground luminaire
Disano In-ground luminaire 1883 MINIFLOOR CLD CELL RVS
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Lamp holder
Other
Suitable for number of lamps
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Nominal voltage
(V)
220 - 240
Electrical connection with connector system
Yes
Colour housing
Other
Material cover
Glass transparent
Adjustable
Yes
Light sharing
Asymmetric
Outer diameter
(mm)
235
Built-in length
(mm)
300
Built-in diameter
(mm)
300
Over rollable
Yes
Max. surface temperature
(°C)
40
Protection class
II
Degree of protection (IP)
IP67
With light source
Yes
Voltage type
AC
Max. load
(kg)
2000
Rated luminous flux according to IEC 62722-2-1
(lm)
1900
Colour of light
Amber
Colour temperature
(K)
2200 - 2200
Colour rendering index CRI
60-69
Dimming 0-10 V
Yes
Dimming 1-10 V
Yes
Dimming DALI
Yes
Dimming DMX
Yes
Dimming DSI
Yes
Dimming potentiometer (integrated)
Yes
Dimming LineSwitch
Yes
Dimming manufacturer's proprietary system
Yes
Dimming mains voltage modulation
Yes
Dimming phase cut-off
Yes
Dimming phase cut-on
Yes
Dimming programmable
Yes
Dimming RF
Yes
Dimming Sine Wave Reduction
Yes
Dimming Touch and Dim
Yes
Dimming Zigbee
Yes
Dimming with push-button
Yes
No dim function
Yes
Light distributor
Other
Beam angle
Narrow beam 11 - 20°
Impact strength
IK08
Suitable for lamp power
(W)
13 - 13
Max. system power
(W)
12
Power factor
0.95
Height/depth
(mm)
329
Built-in height/depth
(mm)
-329
Type of wiring
Ending
Number of poles
2
Conductor cross section
(mm²)
1.5
Connection type
Other
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
Yes
Material housing
Aluminium
Exchangeable control gear
Yes
Constant light output (CLO)
Yes
Colour temperature adjustable
No
Beam angle adjustable
No
Stock and logistics
Height
0.31 m
Width
0.3 m
Depth
0.38 m
Packaging
box
Weight
5.56 kg
HS code
94051990
