Disano
53079000

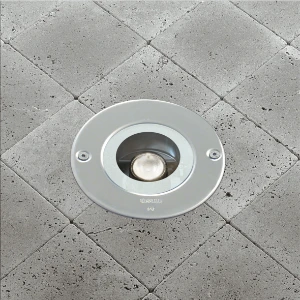

In-ground luminaire
Manufacturer part number: 53079000
Serie: MIDIFLOOR
Type: 530790-00 RVS 4.5W
EAN-code: 8012952105438
SKU Omnical: 4165791
Stock: 0.
Estimated lead time: 24 days *
PreOrder
D78
$
527.59
per item
$
384.61
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
53079000 Disano In-ground luminaire
Disano In-ground luminaire 1871 MIDIFLOOR CLD S+L RGB
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Lamp holder
Other
Suitable for number of lamps
1
With control gear
Yes
Nominal voltage
(V)
24 - 24
Electrical connection with connector system
Yes
Colour housing
Other
Material cover
Glass transparent
Adjustable
Yes
Light sharing
Symmetric
Outer diameter
(mm)
140
Built-in diameter
(mm)
140
Over rollable
Yes
Protection class
III
Degree of protection (IP)
IP67
With light source
Yes
Voltage type
AC
Max. load
(kg)
3000
Rated luminous flux according to IEC 62722-2-1
(lm)
105
Colour of light
Multi-coloured
Colour temperature
(K)
0 - 0
Colour rendering index CRI
70-79
Dimming 0-10 V
Yes
Dimming 1-10 V
Yes
Dimming DALI
Yes
Dimming DMX
Yes
Dimming DSI
Yes
Dimming potentiometer (integrated)
Yes
Dimming LineSwitch
Yes
Dimming manufacturer's proprietary system
Yes
Dimming mains voltage modulation
Yes
Dimming phase cut-off
Yes
Dimming phase cut-on
Yes
Dimming programmable
Yes
Dimming RF
Yes
Dimming Sine Wave Reduction
Yes
Dimming Touch and Dim
Yes
Dimming Zigbee
Yes
Dimming with push-button
Yes
No dim function
Yes
Light distributor
Other
Beam angle
Wide beam 41-80°
Impact strength
IK10
Suitable for lamp power
(W)
4.5 - 4.5
Max. system power
(W)
0
Power factor
0.9
Height/depth
(mm)
100
Built-in height/depth
(mm)
100
Type of wiring
Ending
Number of poles
3
Conductor cross section
(mm²)
1.5
Connection type
Other
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
Yes
Material housing
Aluminium
Exchangeable control gear
Yes
Constant light output (CLO)
Yes
Colour temperature adjustable
No
Beam angle adjustable
No
Dimmable
No
Stock and logistics
Height
0.15 m
Width
0.15 m
Depth
0.115 m
Packaging
box
Weight
1.14 kg
HS code
94051990
