Eaton
025017
Rail terminal bar
Manufacturer part number: 025017
Serie: Aansluitmateriaal
Type: K95/3
EAN-code: 4015080250173
SKU Omnical: 2070200
Stock: 0.
Estimated lead time: 9 days *
PreOrder
M74
€
179,96
per item
€
142,71
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

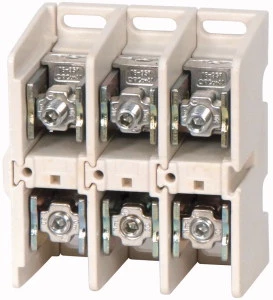

025017 Eaton Rail terminal bar
Eaton Rail terminal bar Aansluitklem, 160A, 3p, vlak/rond
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
3
Connection type
Screwing
Number of connections < 6 mm²
0
Number of connections 10 mm²
0
Number of connections 16 mm²
0
Width
(mm)
99
Number of connections 25 mm²
0
Nominal current
(A)
160
Number of connections > 25 mm²
6
Number of connections total
6
Mounting method
Screw
Height
(mm)
115
Depth
(mm)
100
Contact safe
Yes
Number of connections < AWG 6
0
Number of connections AWG 6
0
Number of connections AWG 4
0
Number of connections AWG 2
0
Number of connections AWG 4/0
0
Number of connections 250 kcmil
0
Number of connections > 250 kcmil
0
Number of inputs
1
Number of outputs
1
Suitable for solid conductors
No
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
No
Suitable for fine strand conductors without cable end sleeve
No
Suitable for extra fine-strand conductors
No
Suitable for extra fine-strand conductors without cable end sleeve
No
Conductor cross section, input
(mm²)
16 - 95
Conductor cross section, output
(mm²)
10 - 95
Conductor cross section, input AWG
3 - 6
Conductor cross section, output AWG
0 - 0
Stock and logistics
Height
0.099 m
Width
0.111 m
Depth
0.131 m
Packaging
box
Weight
1.496 kg
HS code
85389099
Country of Origin
DE
