Eaton
051786

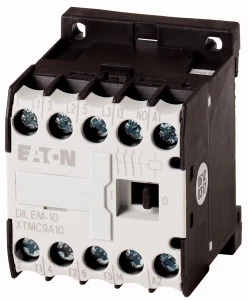

Power contactor, AC switching
Manufacturer part number: 051786
Serie: DILEM
Type: DILEM-10(230V50HZ,240V60HZ)
EAN-code: 4015080517863
SKU Omnical: 1033921
Stock:
74 items.
Delivery time: 1-2 business days.
InStock
M87
$
56.26
per item
$
39.78
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
051786 Eaton Power contactor, AC switching
Eaton Power contactor, AC switching Magneetschakelaar DILEM-10(230V50HZ,240V60HZ) 4kW, 1m,0v
Datasheet
Rated operation power at AC-3, 400 V
(kW)
4
Voltage type for actuating
AC
Rated control supply voltage at AC 50 Hz
(V)
230 - 230
Rated control supply voltage at AC 60 Hz
(V)
240 - 240
Rated control supply voltage at DC
(V)
0 - 0
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-1, 400 V
(A)
22
Rated operation current Ie at AC-3, 400 V
(A)
9
Rated operation current Ie at AC-4, 400 V
(A)
6.6
Rated operation power at AC-4, 400 V
(kW)
3
Modular version
No
Width
(mm)
45
Type of electrical connection of main circuit
Screw connection
Height
(mm)
58
Depth
(mm)
52
Rated operation power NEMA
(kW)
3.7
Operating voltage at AC 50 Hz
(V)
24 - 690
Operating voltage at AC 60 Hz
(V)
24 - 690
Stock and logistics
Height
0.06 m
Width
0.047 m
Depth
0.054 m
Packaging
box
Weight
0.184 kg
HS code
85364900
Country of Origin
DE
