Eaton
055866
Rail terminal bar
Manufacturer part number: 055866
Serie: Aansluitmateriaal
Type: K3X240/4
EAN-code: 4015080558668
SKU Omnical: 2070464
Stock: 0.
Estimated lead time: 46 days *
PreOrder
M74
€
1.965,67
per item
€
1.558,78
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

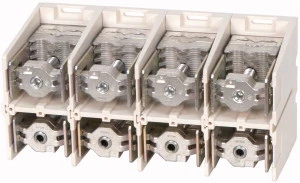

055866 Eaton Rail terminal bar
Eaton Rail terminal bar Aansluitklem, 1000A, 4p, vlak/rond
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Connection type
Screwing
Number of connections < 6 mm²
0
Number of connections 10 mm²
0
Number of connections 16 mm²
0
Width
(mm)
334
Number of connections 25 mm²
0
Nominal current
(A)
1000
Number of connections > 25 mm²
8
Number of connections total
8
Mounting method
Screw
Height
(mm)
165
Depth
(mm)
150
Contact safe
Yes
Number of connections < AWG 6
0
Number of connections AWG 6
0
Number of connections AWG 4
0
Number of connections AWG 2
0
Number of connections AWG 4/0
0
Number of connections 250 kcmil
0
Number of connections > 250 kcmil
0
Number of inputs
2
Number of outputs
3
Suitable for solid conductors
No
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
No
Suitable for fine strand conductors without cable end sleeve
No
Suitable for extra fine-strand conductors
No
Suitable for extra fine-strand conductors without cable end sleeve
No
Conductor cross section, input
(mm²)
50 - 240
Conductor cross section, output
(mm²)
50 - 300
Conductor cross section, input AWG
1 - 500
Conductor cross section, output AWG
0 - 0
Stock and logistics
Height
0.17 m
Width
0.18 m
Depth
0.225 m
Packaging
box
Weight
17.781 kg
HS code
85389099
Country of Origin
DE
